Self-Evolving Reward
Human-confirmed positives and conservative weak negatives update the deployed success classifier with label-source isolation and gated EMA deployment.
Representative deployments
Real-Robot Performance
EvoHIL produces smooth, coherent behavior across both short-horizon pushing and long-horizon stowing. The paired rollouts below are displayed concurrently at 3× speed.
3× speed
3× speed

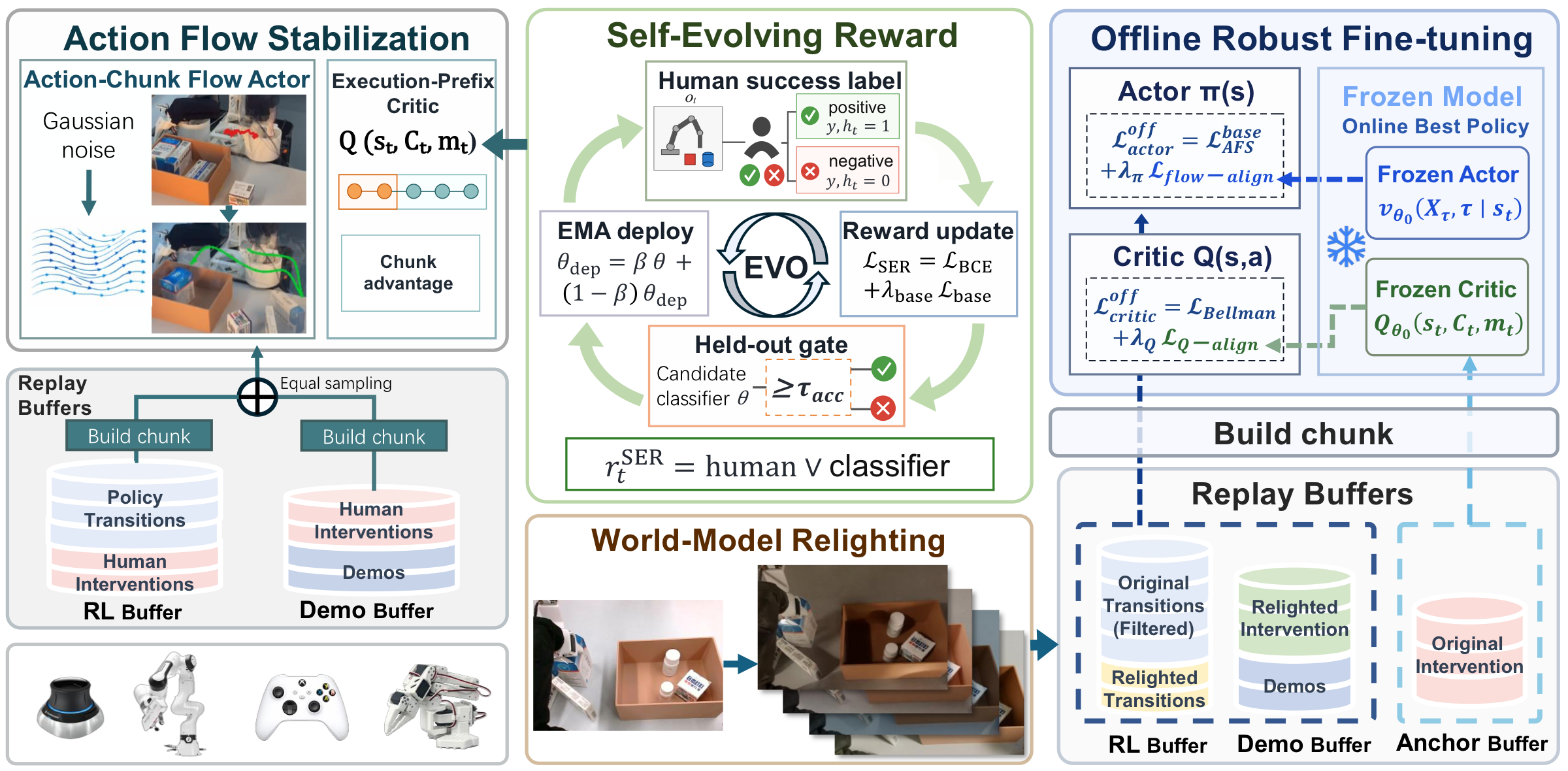

Human feedback drives a self-evolving learning loop: the reward classifier adapts as the scene changes, the flow-matching policy generates coherent action chunks, and retention-aware fine-tuning improves visual robustness without additional robot interaction.
Method
Overview
Human-in-the-loop reinforcement learning is effective for contact-rich manipulation, but three interfaces commonly remain fixed after deployment: the visual reward model, the step-wise action generator, and the policy's visual training domain. A change in lighting can corrupt success labels, destabilize control, and sharply reduce task success.
Action Flow Stabilization
A flow-matching actor generates short, coherent action chunks. An execution-prefix critic evaluates only the portion that reaches the robot.
Retention-Aware Adaptation
Relit replay expands visual coverage, while frozen actor and critic references preserve previously mastered behavior.
Evaluation suite
Two Robots, Six Tasks

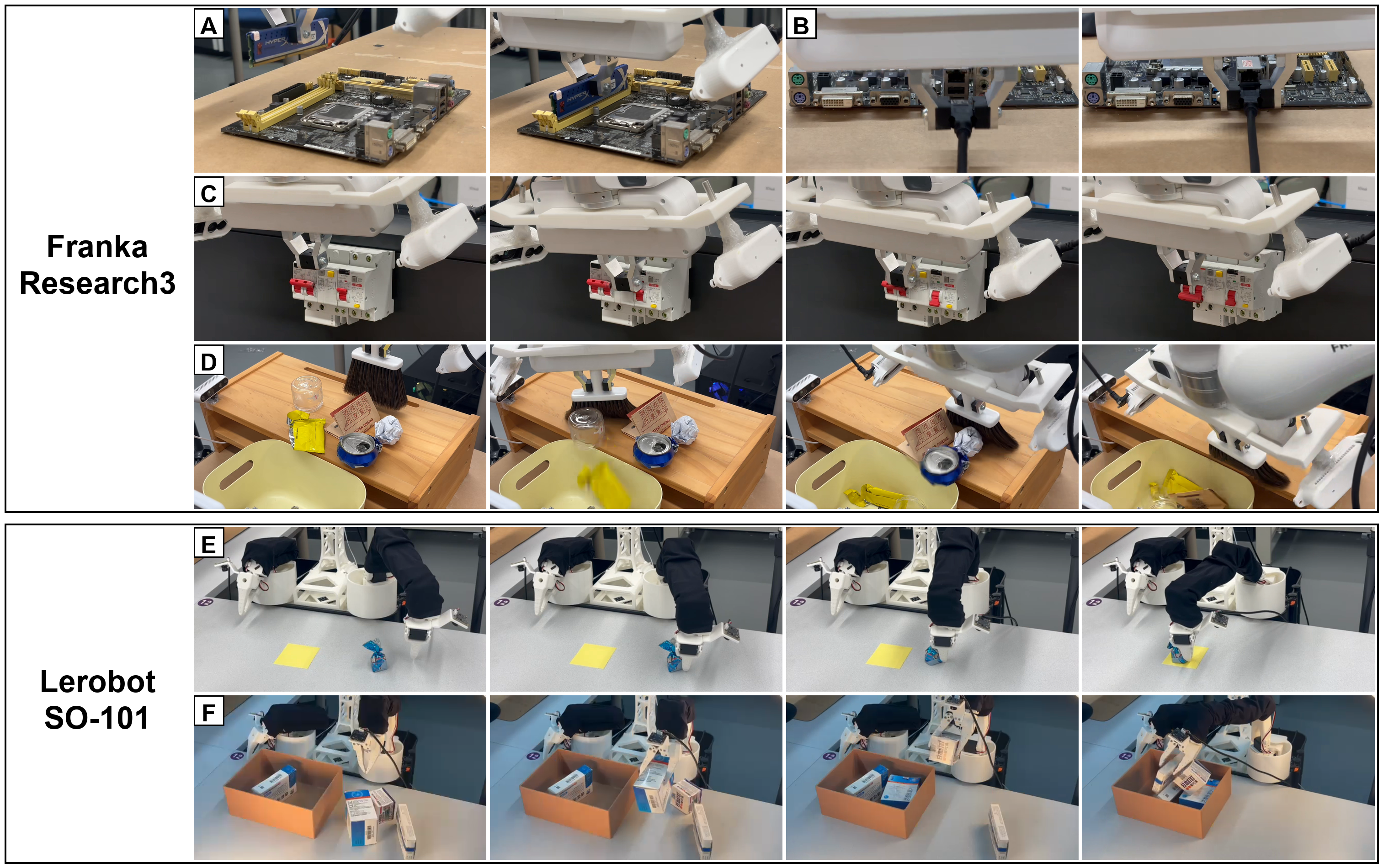

We evaluate precision insertion, surface manipulation, contact operation, pushing, and long-horizon stowing on a Franka FR3 and a low-cost SO-101 arm.
Robustness analysis
Robustness under Illumination Shift

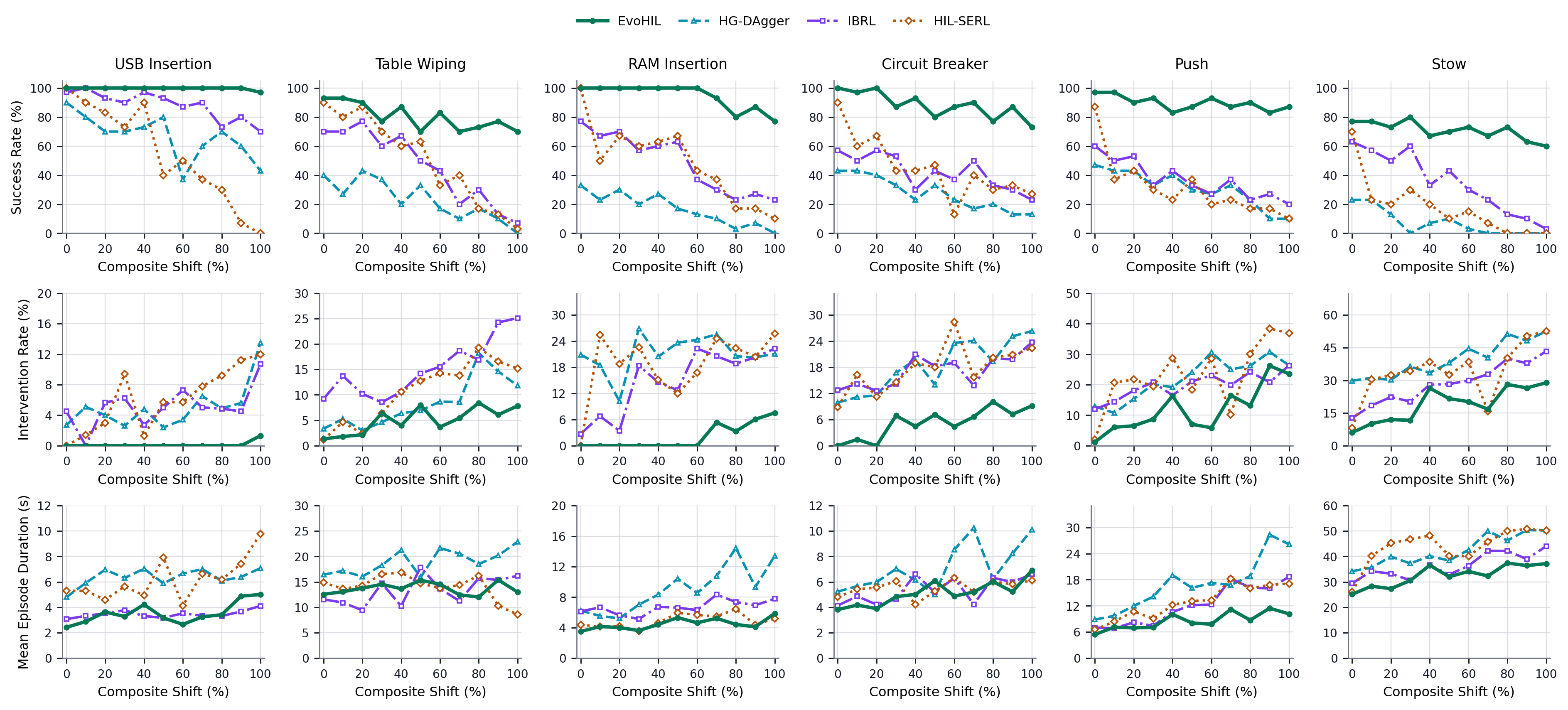

Ten ordered conditions vary brightness, color temperature, shadow, and reflection. At the primary 60% composite shift, EvoHIL improves the six-task mean success rate from 29% to 89%: an absolute gain of 60 percentage points and approximately 3.1× the HIL-SERL success rate.
89%EvoHIL mean success at 60% shift
+60 ppabsolute gain over HIL-SERL
≈3.1×relative success rate at 60% shift
Table IVSelected-policy success at 60% composite illumination shift
Success rate (%)
| Task | Robot | HIL-SERL | EvoHIL | Gain |
|---|---|---|---|---|
| USB insertion | FR3 | 50% | 100% | +50 pp |
| RAM insertion | FR3 | 43% | 100% | +57 pp |
| Table wiping | FR3 | 33% | 87% | +54 pp |
| Circuit breaker | FR3 | 13% | 83% | +70 pp |
| Candy push | SO-101 | 20% | 93% | +73 pp |
| Medicine-box stow | SO-101 | 15% | 73% | +58 pp |
| Mean | — | 29% | 89% | +60 pp |
Evaluation protocol. For a fair comparison, every method–task entry in Table IV is averaged over 60 evaluation trials. The gain column reports the absolute difference in percentage points (pp).
Control quality
Action Smoothness

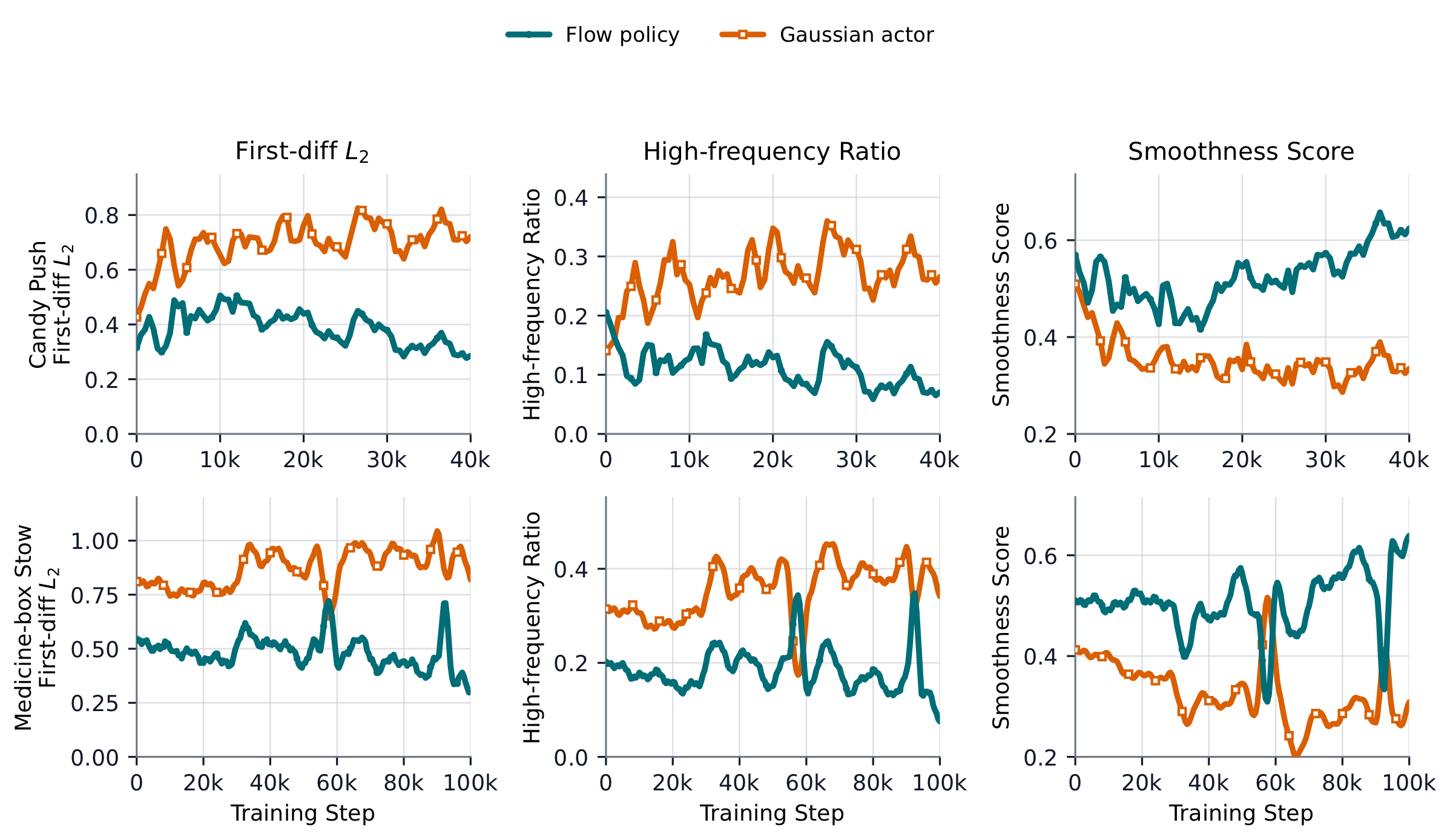

HIL-SERL samples commands independently, producing frequent corrections. EvoHIL integrates a learned velocity field into temporally coherent action chunks. All videos are shown at 3× speed.
Candy Pushing
Overlaid end-effector trajectories show the baseline's irregular corrections and EvoHIL's shorter, more coherent path.
Medicine-Box Stowing
The same improvement persists in a longer-horizon task that requires coordinated arm and gripper control.
Qualitative evidence
Real-Robot Demonstrations
Each experiment pairs a characteristic failure after an illumination change with repeated EvoHIL successes in the corresponding scene. All videos are shown at 3× speed.
Franka FR3
RAM Insertion
Precision insertion under visual shift.
Franka FR3
USB Insertion
Contact-rich alignment and insertion.
Franka FR3
Circuit Breaker
Discrete contact operation.
Franka FR3
Table Wiping
Long surface-contact manipulation.
SO-101
Candy Pushing
Planar object transport.
SO-101
Medicine-Box Stowing
Long-horizon pick and place.
Evaluation Scope
The experiments support targeted adaptation to a predefined family of illumination changes. Each illumination-sweep curve point summarizes 30 rollouts of one selected policy, while every method–task entry in Table IV is averaged over 60 evaluation trials for a matched comparison. The page does not claim unrestricted zero-shot visual generalization or physical jerk guarantees.
